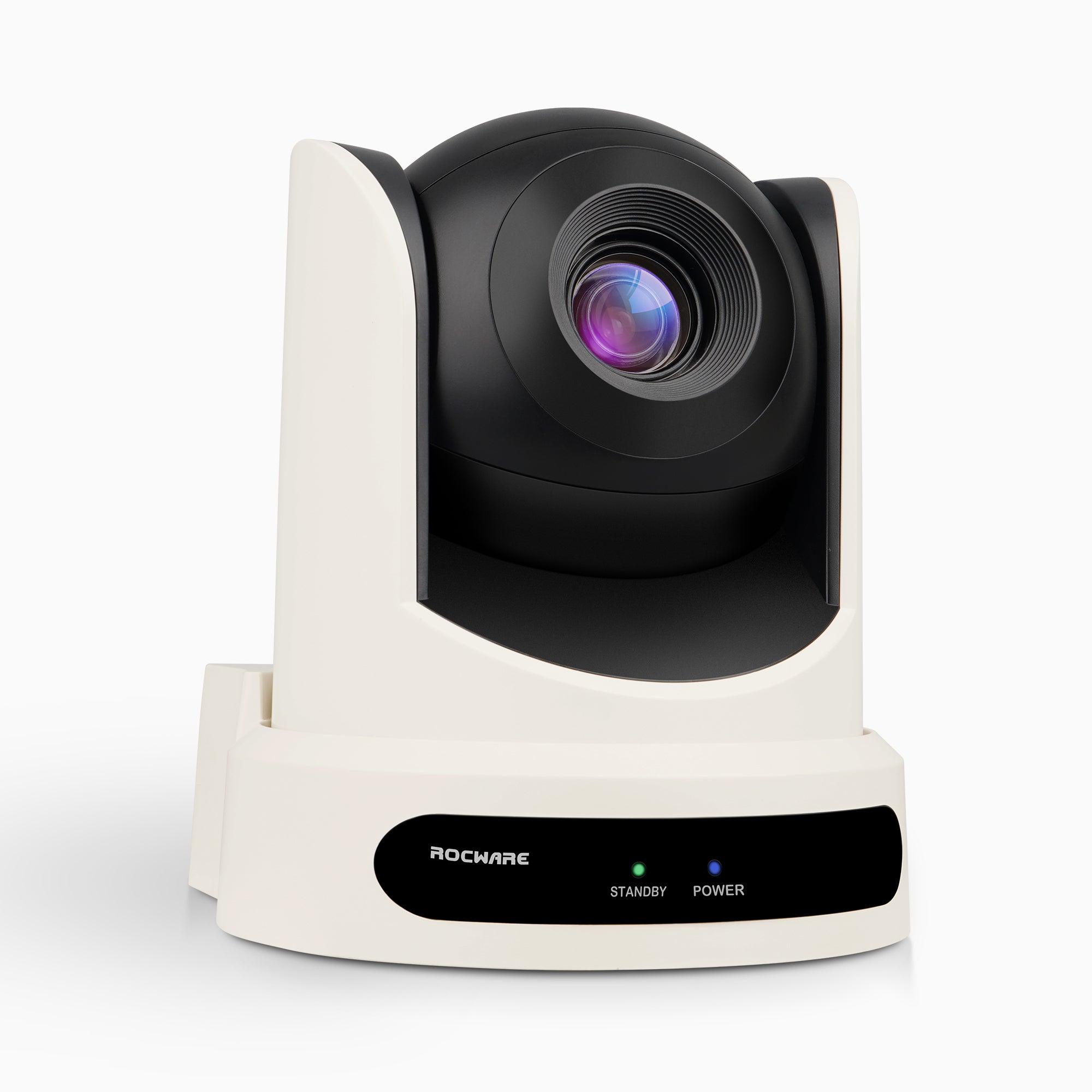

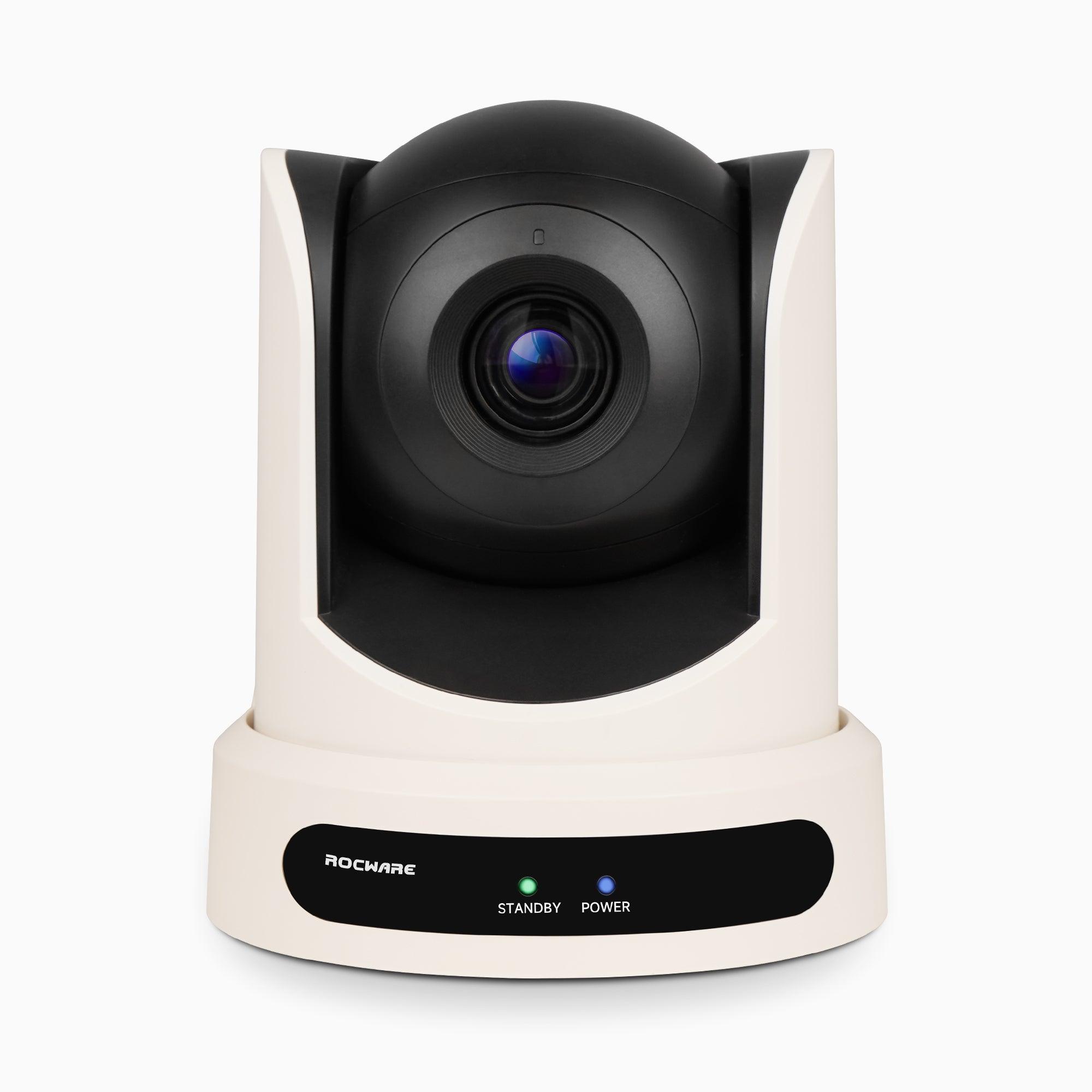

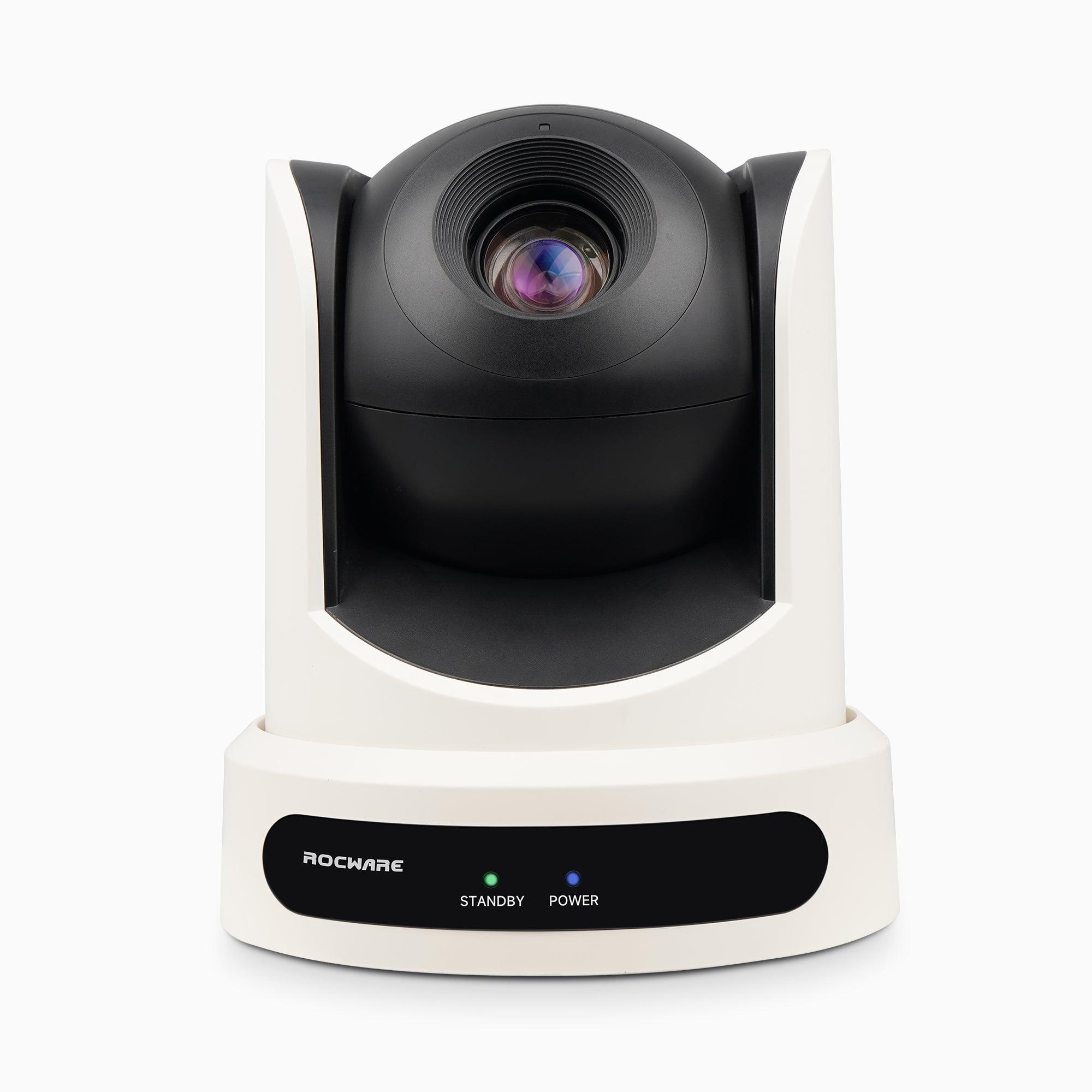

RC20 1080P PTZ USB Camera with 10x Optical Zoom
Perfect for enterprise use, the RC20 combines functionality with affordability, making it an ideal choice for any meeting space.
Pairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible.
Customer Support
support@rocware.com
Contact Us
sales@rocware.com
ROCWARE
We are a technology-focused company that makes the next-generation UC products. Our solutions are deeply rooted in our 16 years of Professional AV technologies and experience.
We can provide higher audio and video quality in our UC products for enterprises at a more competitive price to our customers thanks to your vertically integrated business model.

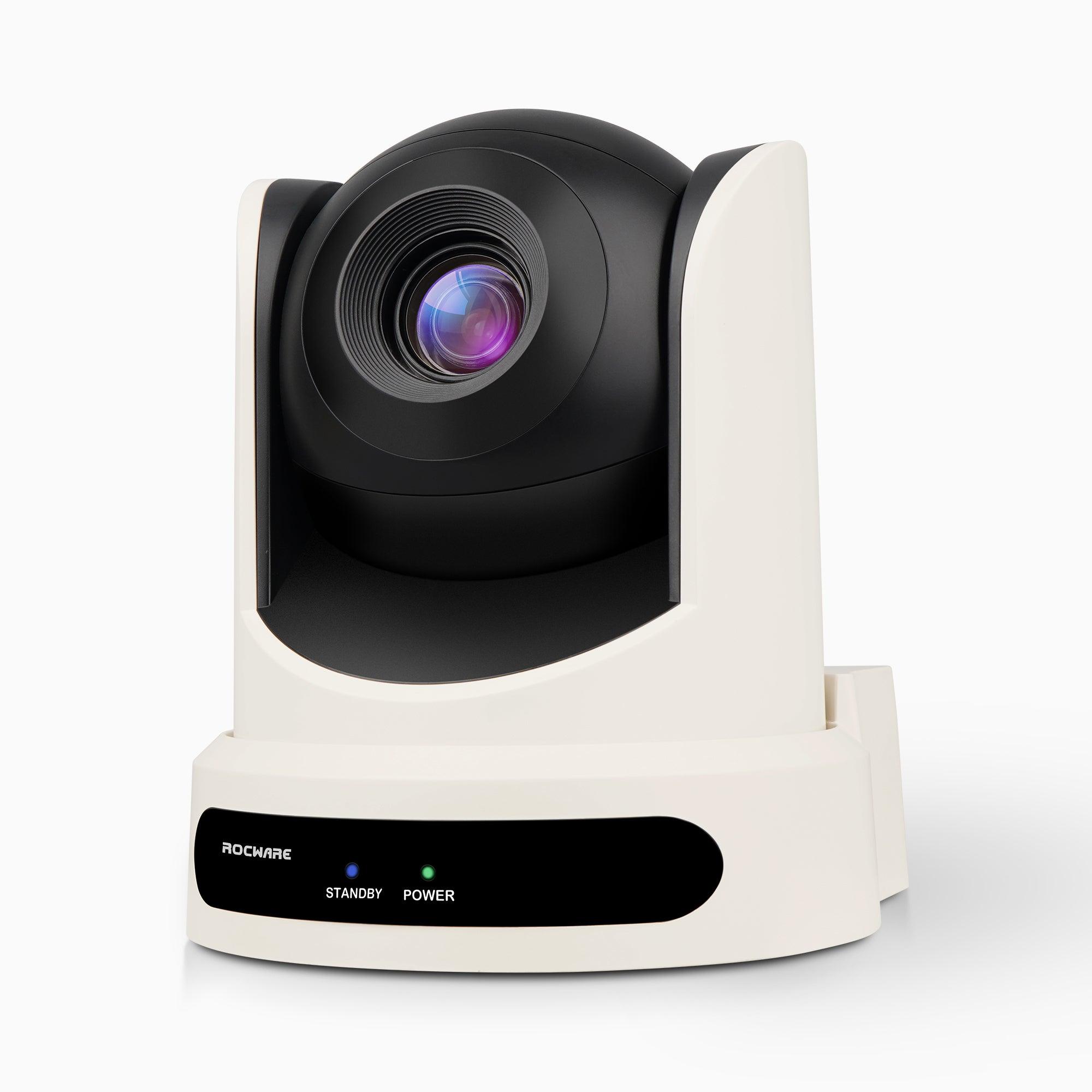

1080P Video Conferencing PTZ Camera
The RC20 is built for businesses that need a cost-effective, high-quality video conferencing solution. Equipped with a next-gen 1/2.8-inch HD CMOS sensor, it delivers crystal-clear 1080P resolution, ensuring every detail in your meeting room is captured with precision.
1080P Full HD
Experience stunning clarity with 2.07 million effective pixels, offering a maximum resolution of 1920x1080.

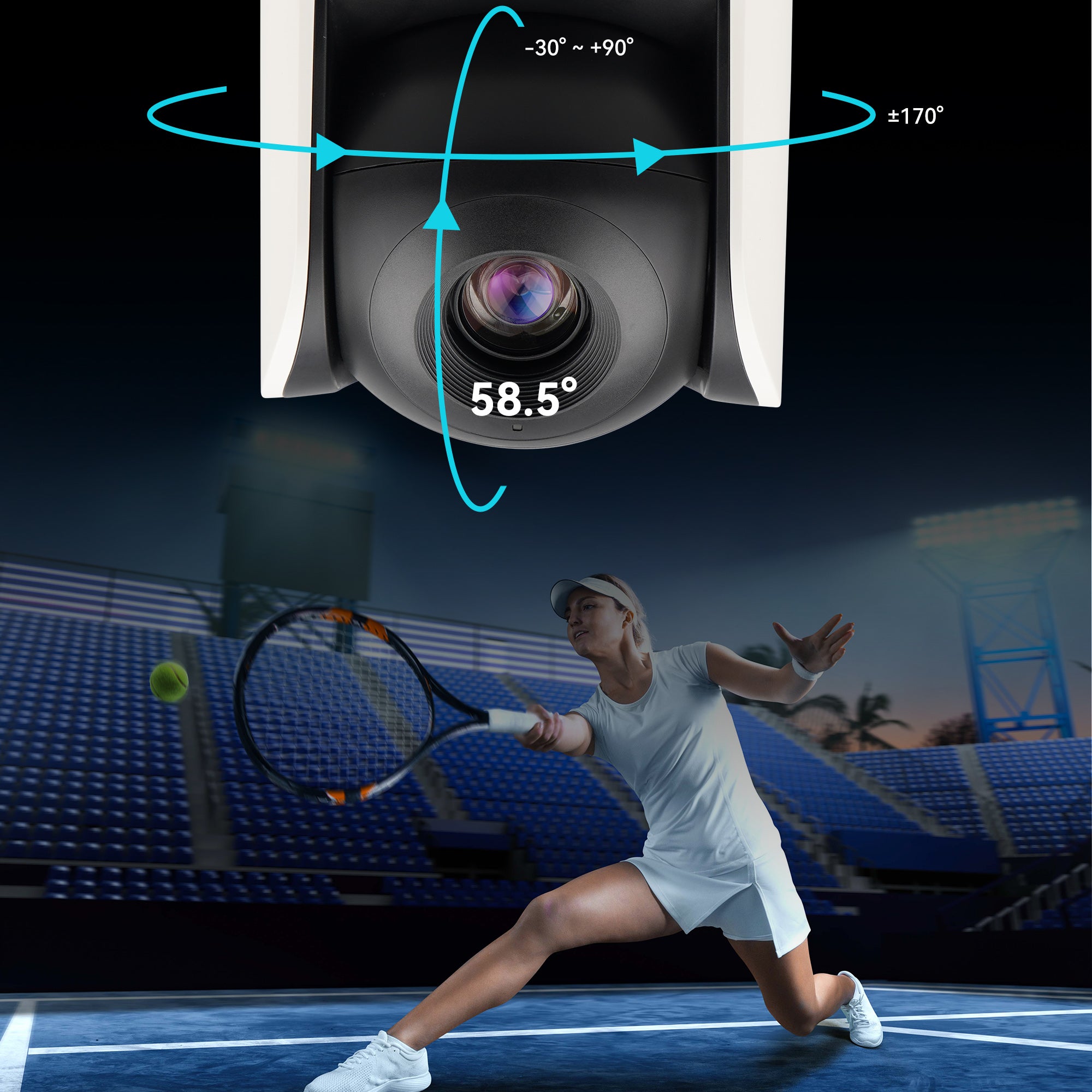

Silent Mechanical PTZ
With our self-developed motorized pan-tilt system, the camera smoothly rotates up to ±170° horizontally and from -30° to 90° vertically, offering a quiet and seamless experience.
10x Optical Zoom
The lens provides a 10x optical zoom (focal length: 4.7mm ~ 46.3mm), ensuring close-up views of the room are sharp and detailed.

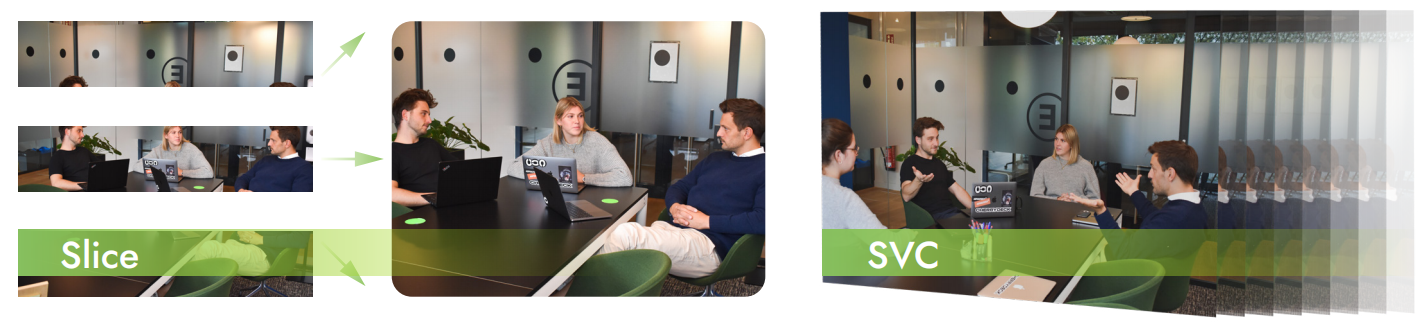

Low-Latency Transmission
Enjoy smooth video with minimal delay, thanks to Slice and SVC encoding that adapts to different network environments.
Remote Control Ready

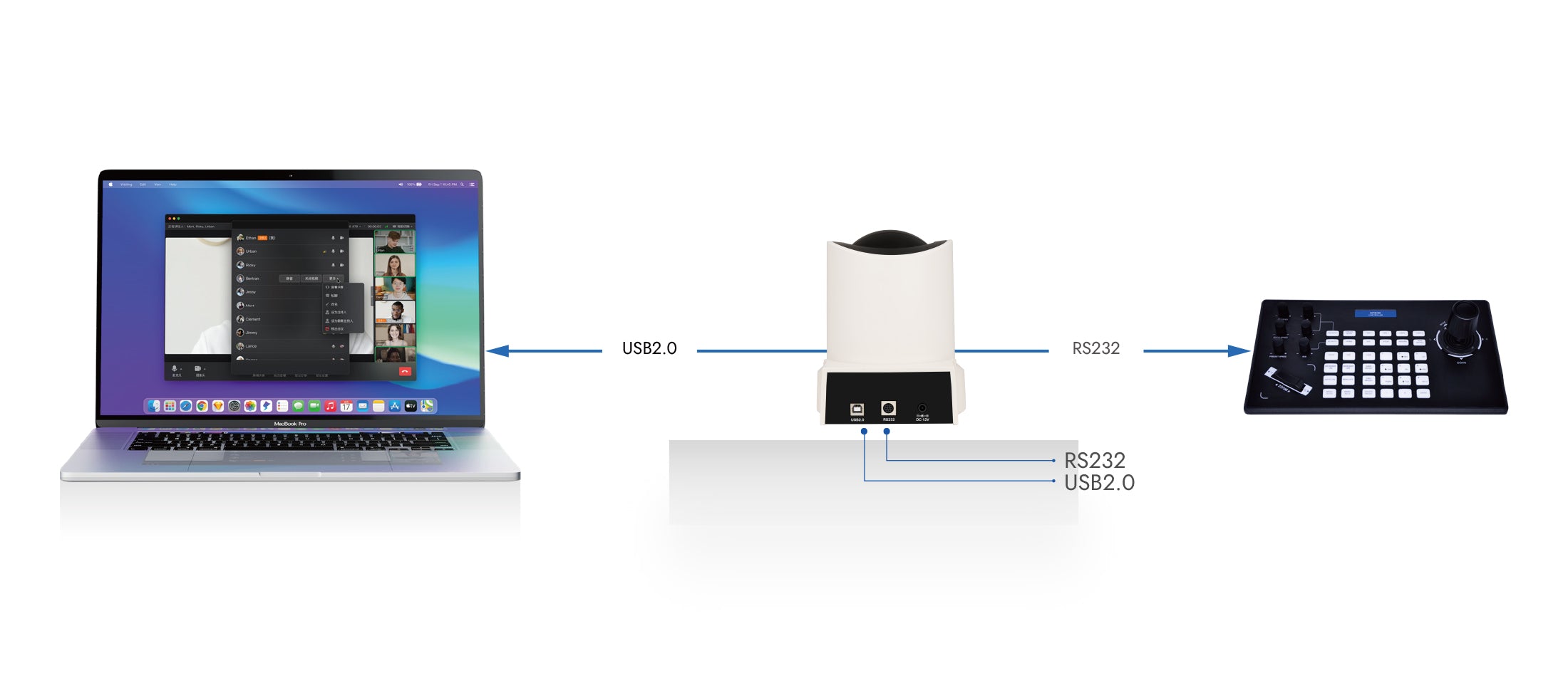

The RC20 supports RS232 serial port control, allowing you to manage pan, tilt, and zoom functions with ease via a remote control keyboard.

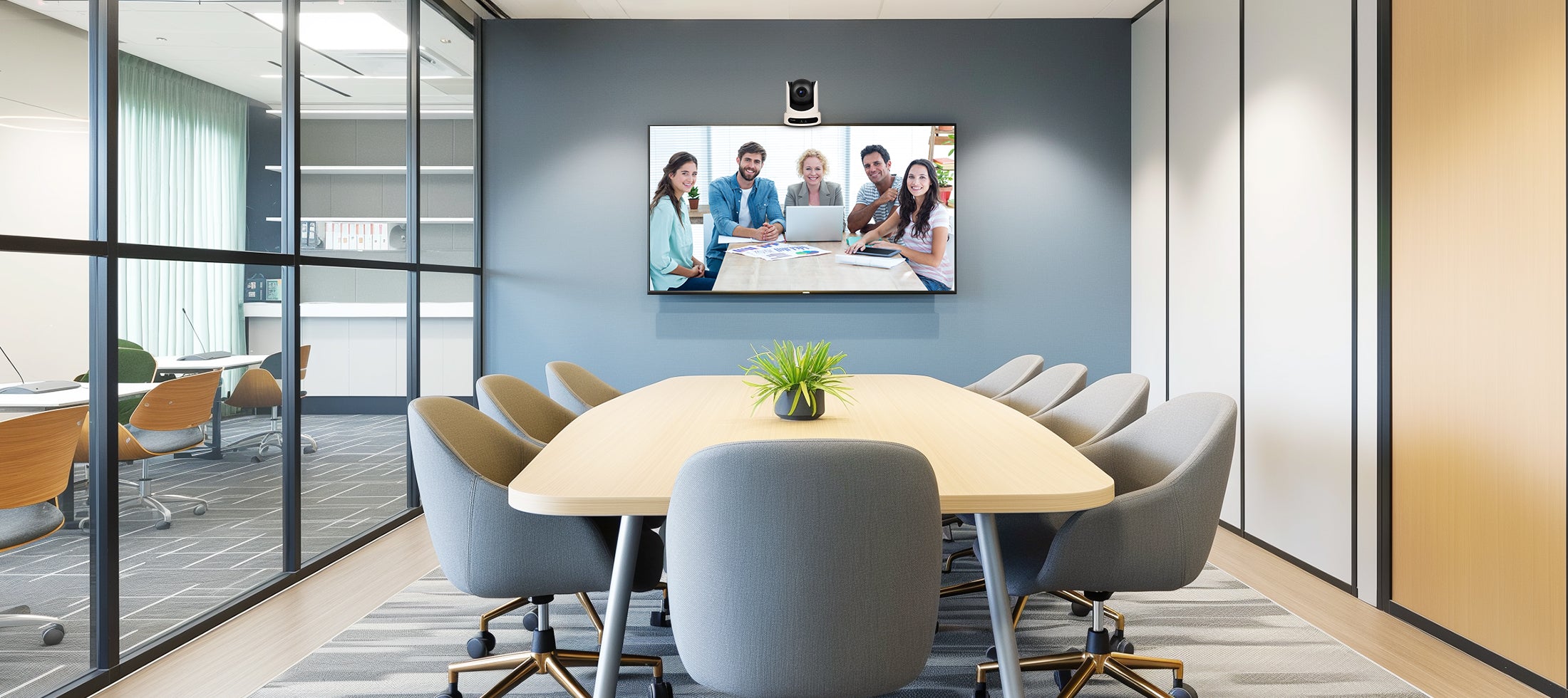

Flexible Installation
Mount it your way—whether it’s on a wall, ceiling, or suspended, the RC20 adapts to your meeting room setup, offering horizontal and vertical flipping for added convenience.
Product Details
Camera
- Video Resolution 1080P, 720P, 540P, 480P, 360P, 240P
- Sensor 1/2.8'', CMOS, 2.07 Megapixels
- Scanning Mode Progressive
- Lens 10x, f4.7mm ~ 46.3mm, F1.8 ~ F2.8
- Digital Zoom 16x
- Minimal Illumination 0.5Lux @ (F1.8, AGC ON)
- Shutter 1/30s ~ 1/10000s
- White Balance Auto, Indoor, Outdoor, One Push, Manual,
Adjustable color temperature - Backlight Compensation Support
- Digital Noise Reduction 2D&3D Digital Noise Reduction
- Video S/N ≥55dB
- Horizontal Angle of View 58.5° ~ 6.5°
- Vertical Angle of View 35.1° ~ 3.6°
- Horizontal Rotation Range ±170°
- Vertical Rotation Range -30° ~ +90°
- Pan Speed Range 2.7° ~ 47°/s
- Tilt Speed Range 3.4° ~ 30°/s
- H & V Flip Support
- Number of Preset 255
- Preset Accuracy 0.1°
USB features
- Operating System Windows 7, Windows 8, Windows 10, Mac
OS X, Linux, Android - Color System / Compression YUY2 / H.264 / MJPEG
- Video Format
H.264 AVC: Max 1080P30;
H.264 SVC: Max 1080P30;
MJPEG: Max 1080P30 - USB Video Communication Protocol UVC 1.1
- UVC PTZ Control Support

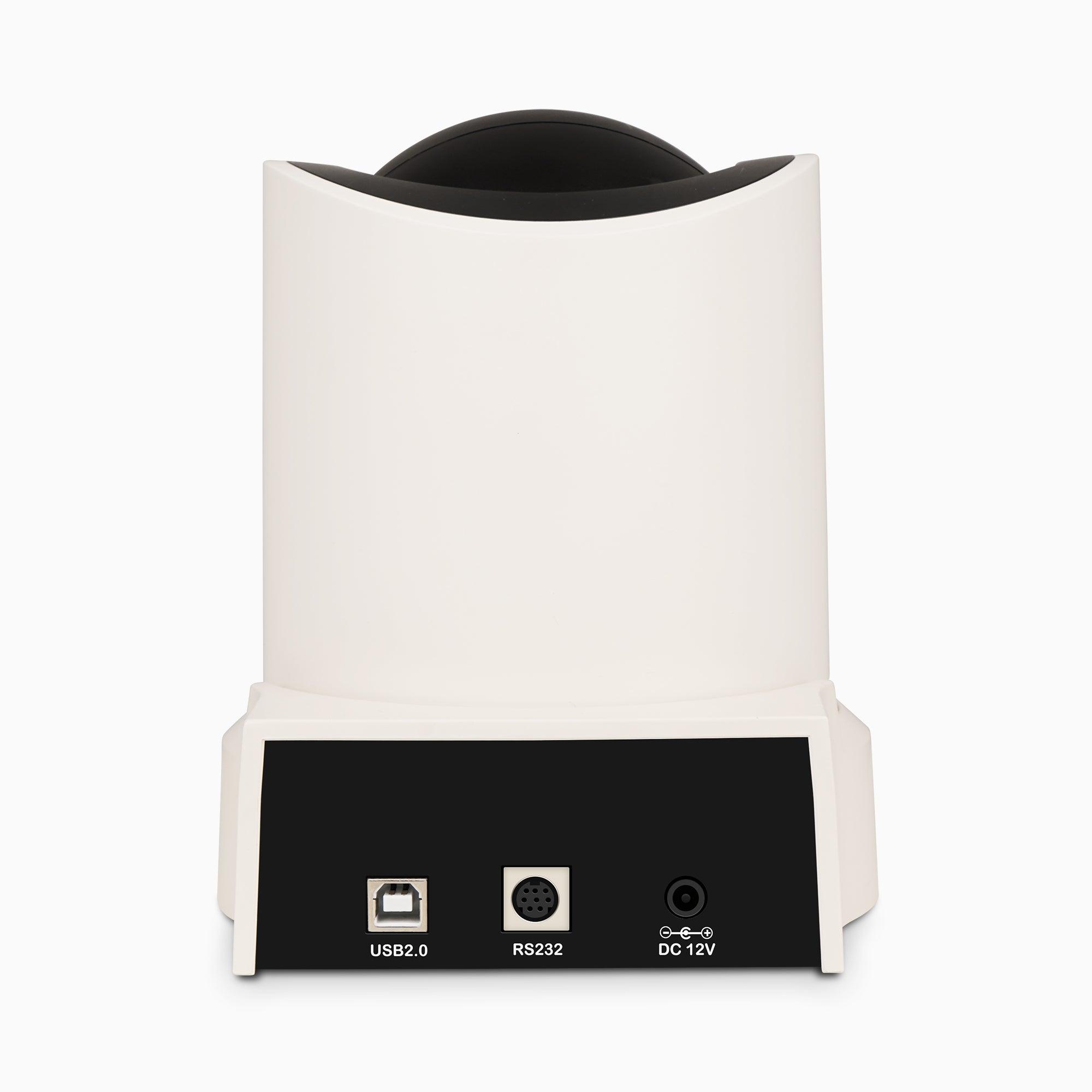

INPUT / OUTPUT INTERFACE
- USB 1x USB 2.0, Type-B Jack
- Communication Interface 1x RS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
- Power Jack JEITA Type (DC IN 12V)
General specifications
- Input Voltage DC 12V
- Input Current 1A (Max)
- Operating Temperature -10°C ~ 40°C
- Storage Temperature -40°C ~ 60°C
- Power Consumption 12W (Max)
- MTBF >30000H
- Dimension 141.5mm(W) × 151.1mm(D) × 170.2mm(H)
- Weight 1.153kg
