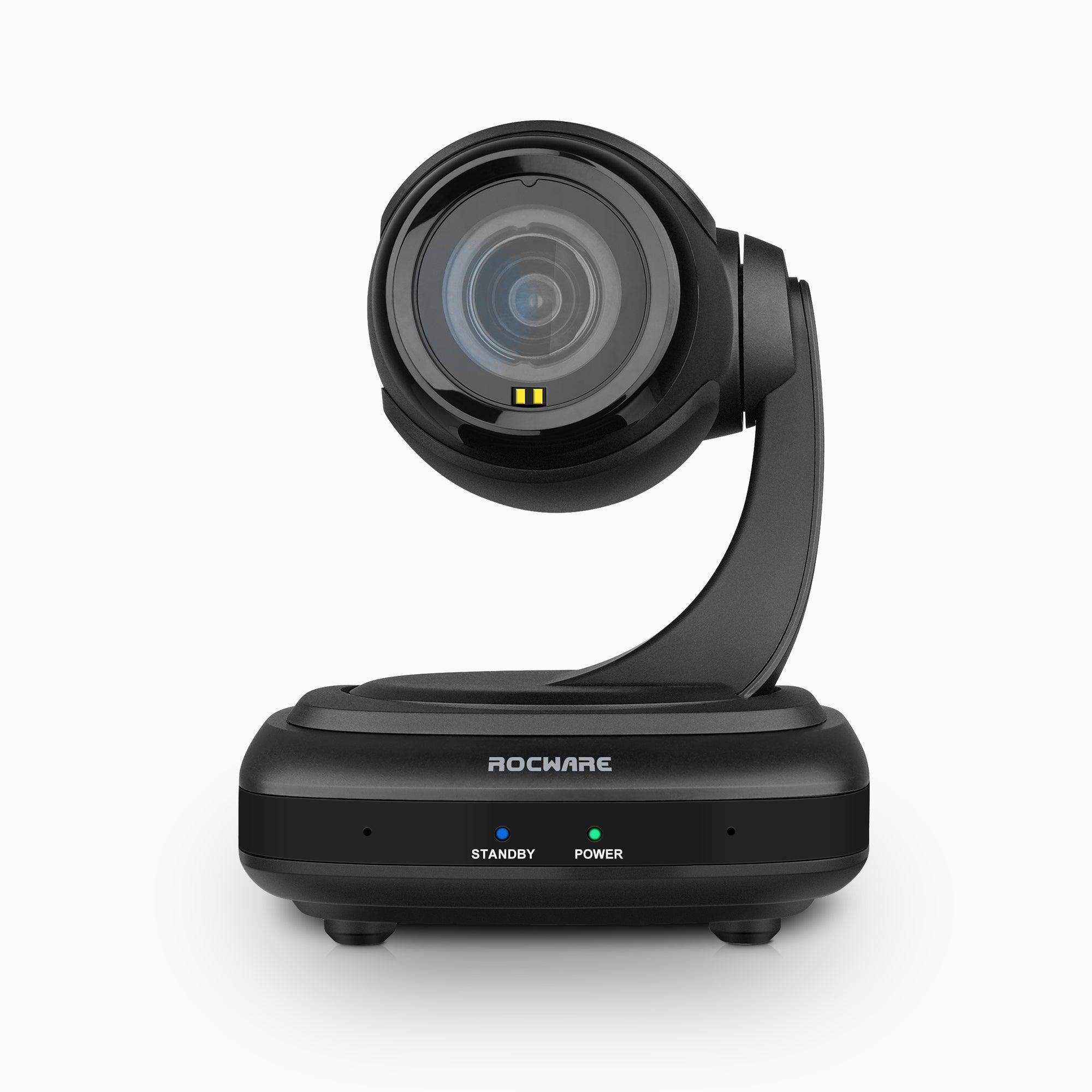

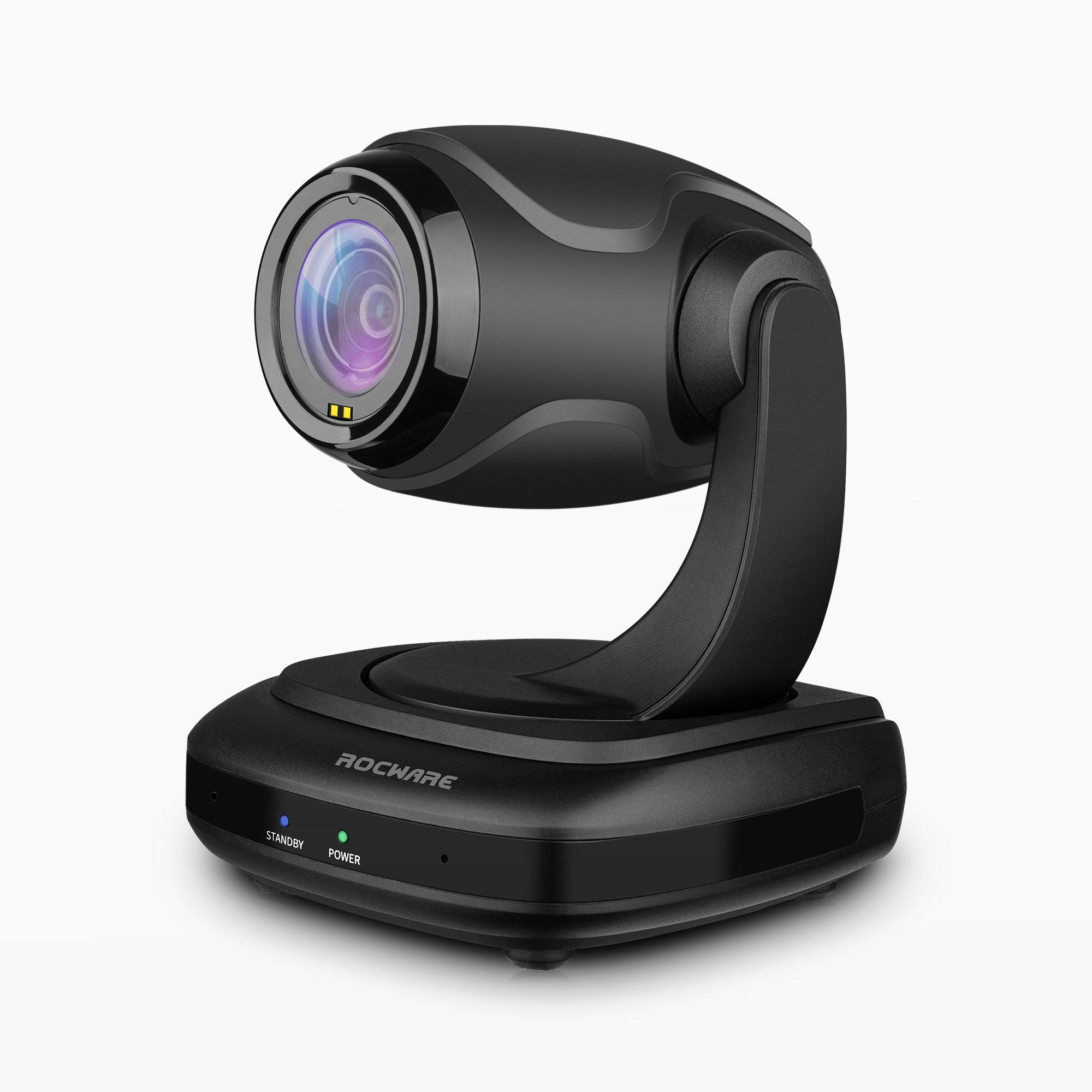

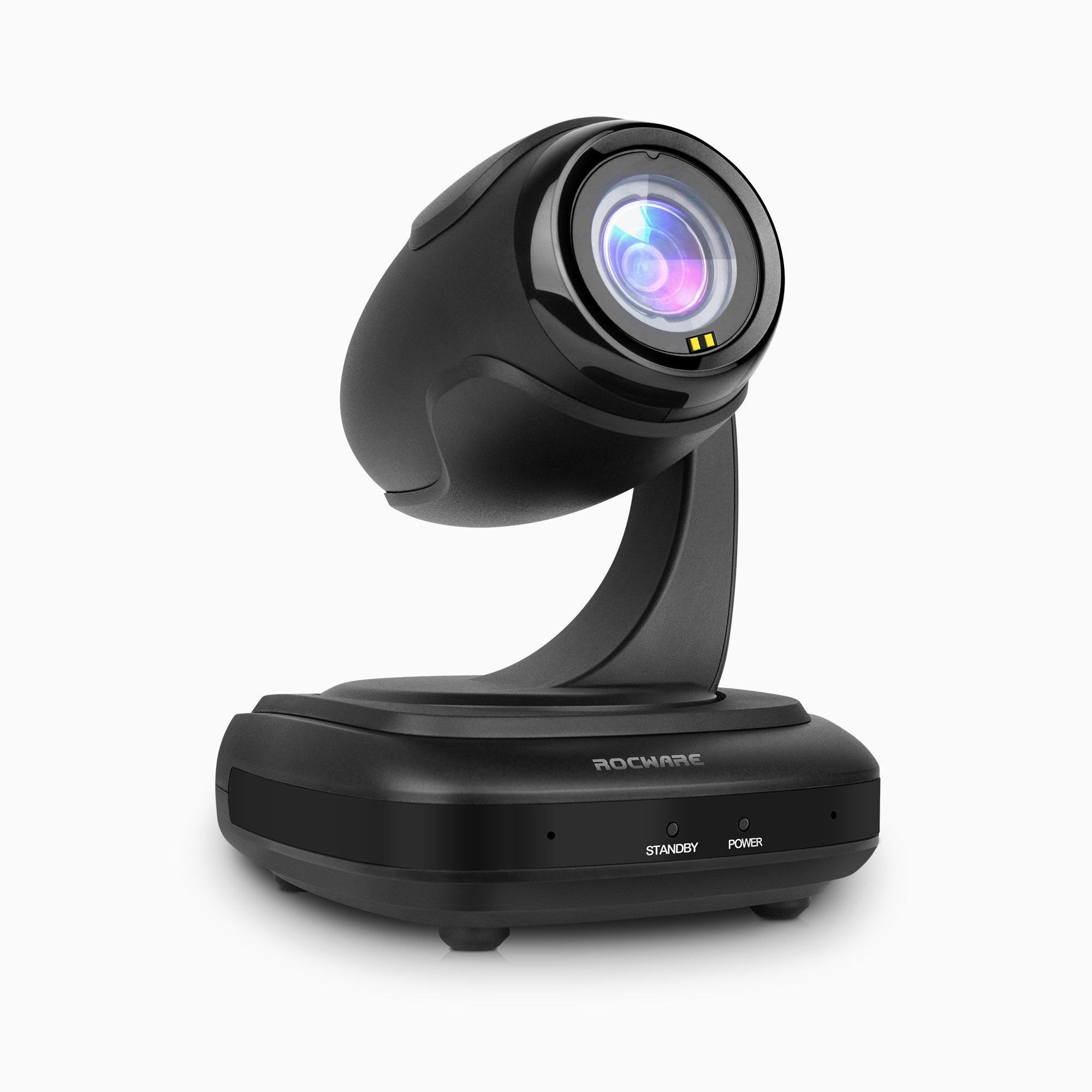

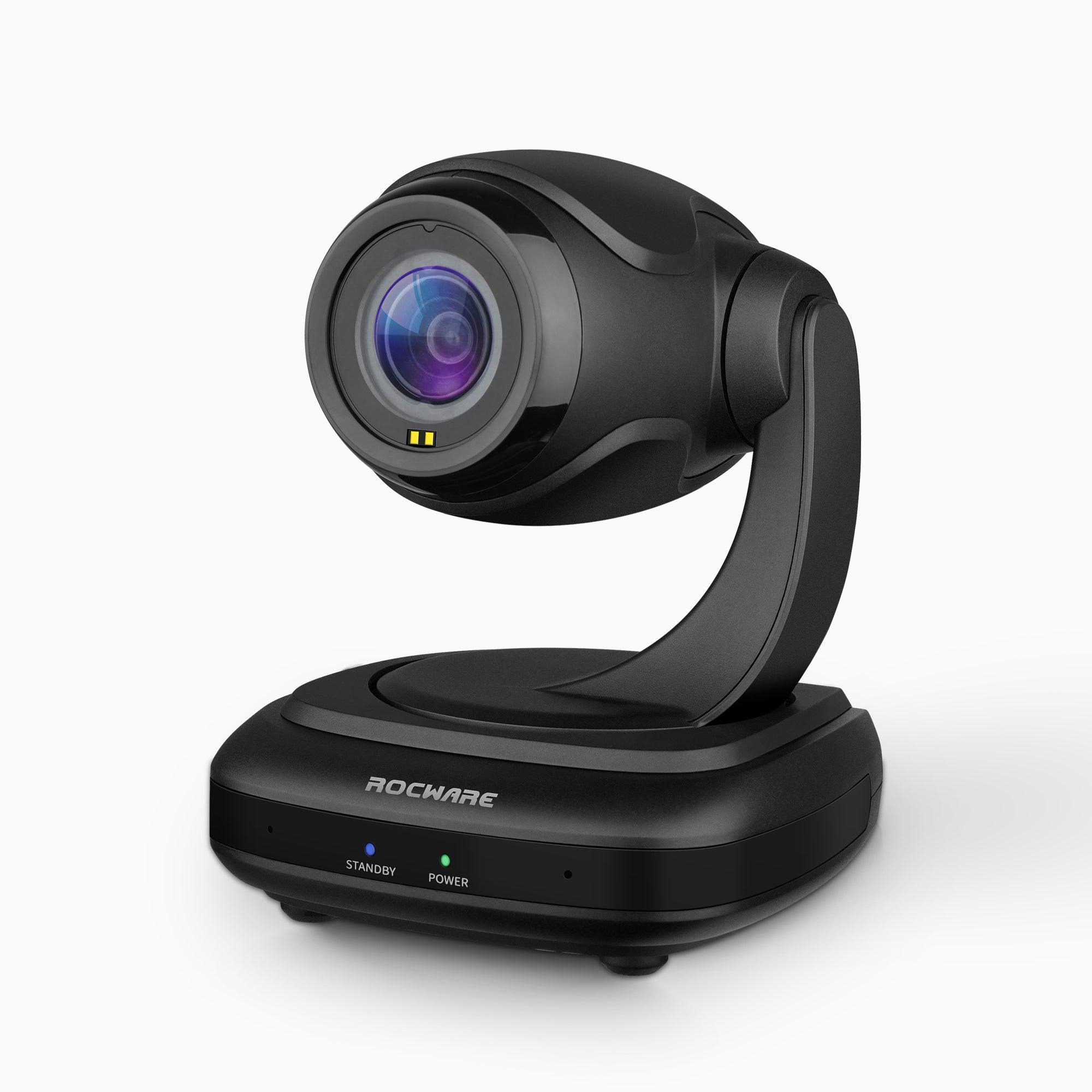

RC310 Mini Video PTZ Camera for online conference with 3x Optical Zoom
The RC310 1080P HD Mini Video PTZ camera has a 120° vertical tilt angle, 340° horizontal pan angle, and 3x optical zoom. It is compact like a webcam but offers more professional and flexible control.
Pairs well with
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible.
Customer Support
support@rocware.com
Contact Us
sales@rocware.com
ROCWARE
We are a technology-focused company that makes the next-generation UC products. Our solutions are deeply rooted in our 16 years of Professional AV technologies and experience.
We can provide higher audio and video quality in our UC products for enterprises at a more competitive price to our customers thanks to your vertically integrated business model.
90° Wide-angle Lens
AI Humanoid Tracking
TOF Auto Focus
3x Optical Zoom + 16x Digital Zoom
RC310 MINI SIZE HD PTZ CAMERA
Designed for small meeting scenarios, RC310 features a 1/2.9-inch high-quality CMOS sensor that delivers 1080P high-resolution photos. With its array of AI video algorithms, RC310 ensures an exceptional video communication experience.
Crystal Clear Video
High-quality sensors produce sharp 1080P video with brilliant color for video conferencing in any space.
90° Wide-angle Lens
This device features a premium ultra-wide focal lens at a 90° angle, which offers a panoramic view.

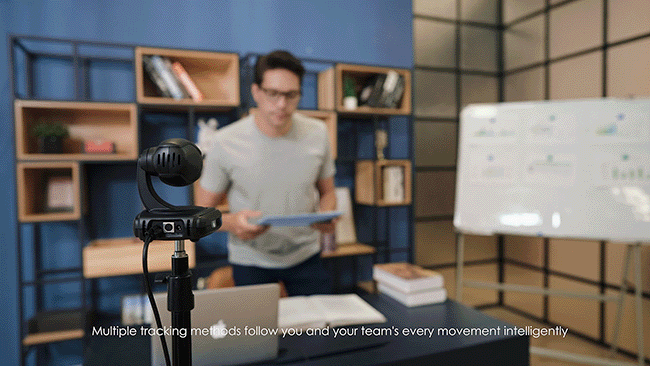

AI Humanoid Tracking
ROCWARE RC310 AI Auto Tracking feature provides full or half-body automatic motion tracking or center zone tracking without the need for a camera operator. It enhances your ability to present content in motion.

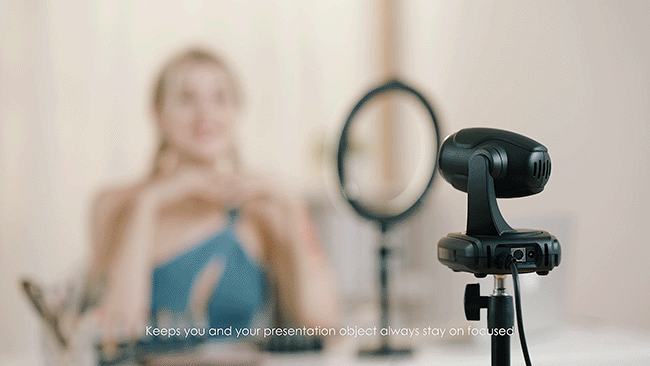

TOF Auto Focus
Equipped with a laser-assisted focusing instrument and realize high-speed and accurate auto-focusing through the advanced auto-focusing algorithm.
3x Optical Zoom + 16x Digital Zoom
RC310 features a 3x optical and 16x digital zoom, allowing for clear images with a 90° to 30.7° field of view.
Remote control
Remote control support allows you to easily set and call preset positions, zoom in/out, and control PTZ movements.
Full-Featured USB Interface
ROCWARE RC310 has a complete USB2.0 interface and supports audio, encoding output, UVC 1.1 protocols.
Product Details
Camera
- Sensor:1/2.9'', CMOS, Max Effective Pixel
- Scanning Mode:Progressive
- Lens :3x, f3.35mm ~ 10.05mm, F1.7 ~ F3.0
- Digital Zoom:16x
- Minimal Illumination:0.5Lux @ (F1.8, AGC ON)
- Shutter:1/30s ~ 1/10000s
- White Balance:Auto, Indoor, Outdoor, One Push, Manual,VAR
- Backlight Compensation :Support
- Digital Noise Reduction: 2D&3D Digital Noise Reduction
- S/N :≥55dB
- Horizontal Angle of View:90° ~ 30.7°
- Vertical Angle of View:52° ~ 18.4°

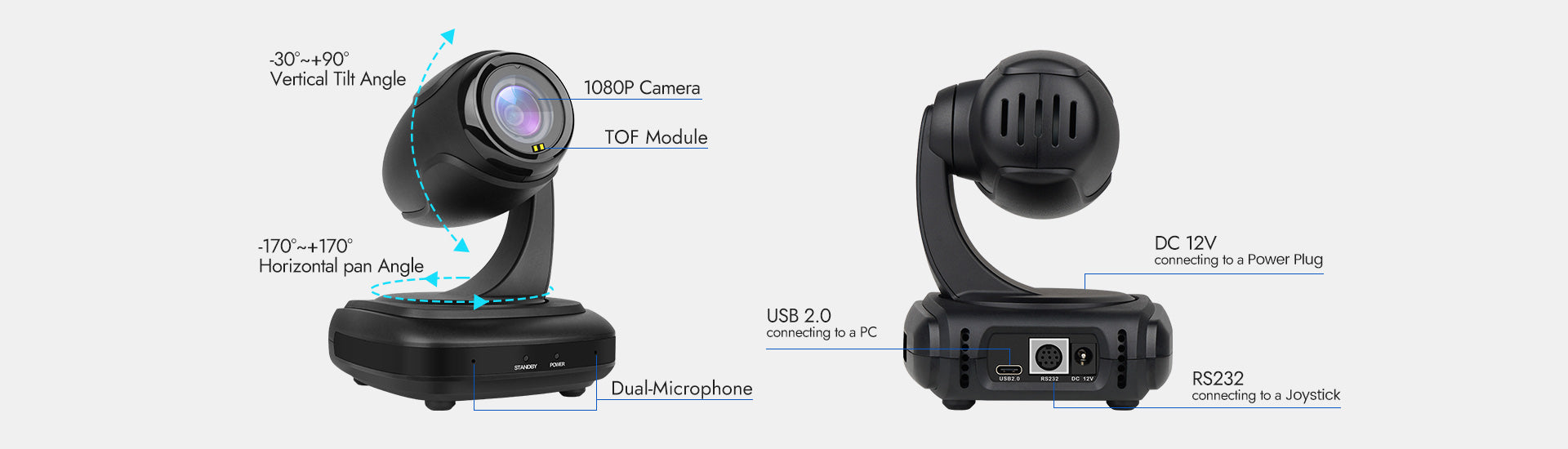

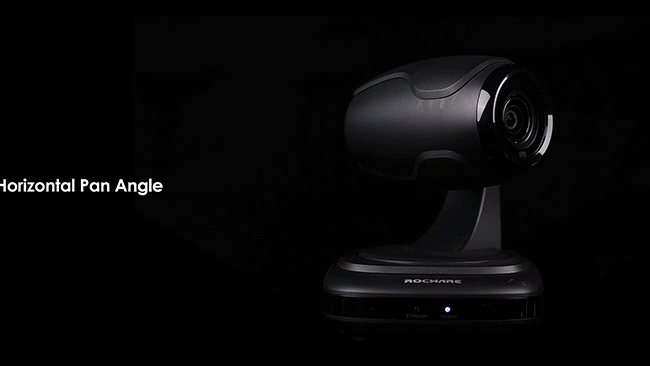

- Horizontal Rotation Range:±170°
- Vertical Rotation Range :-30° ~ +90°
- Pan Speed Range:2.7° ~ 35.7°/s
- Tilt Speed Range:2.7° ~ 31.5°/s
- H & V Flip:Support
- Image Freezing:Support
- Number of Preset:255
- Preset Accuracy:0.1°

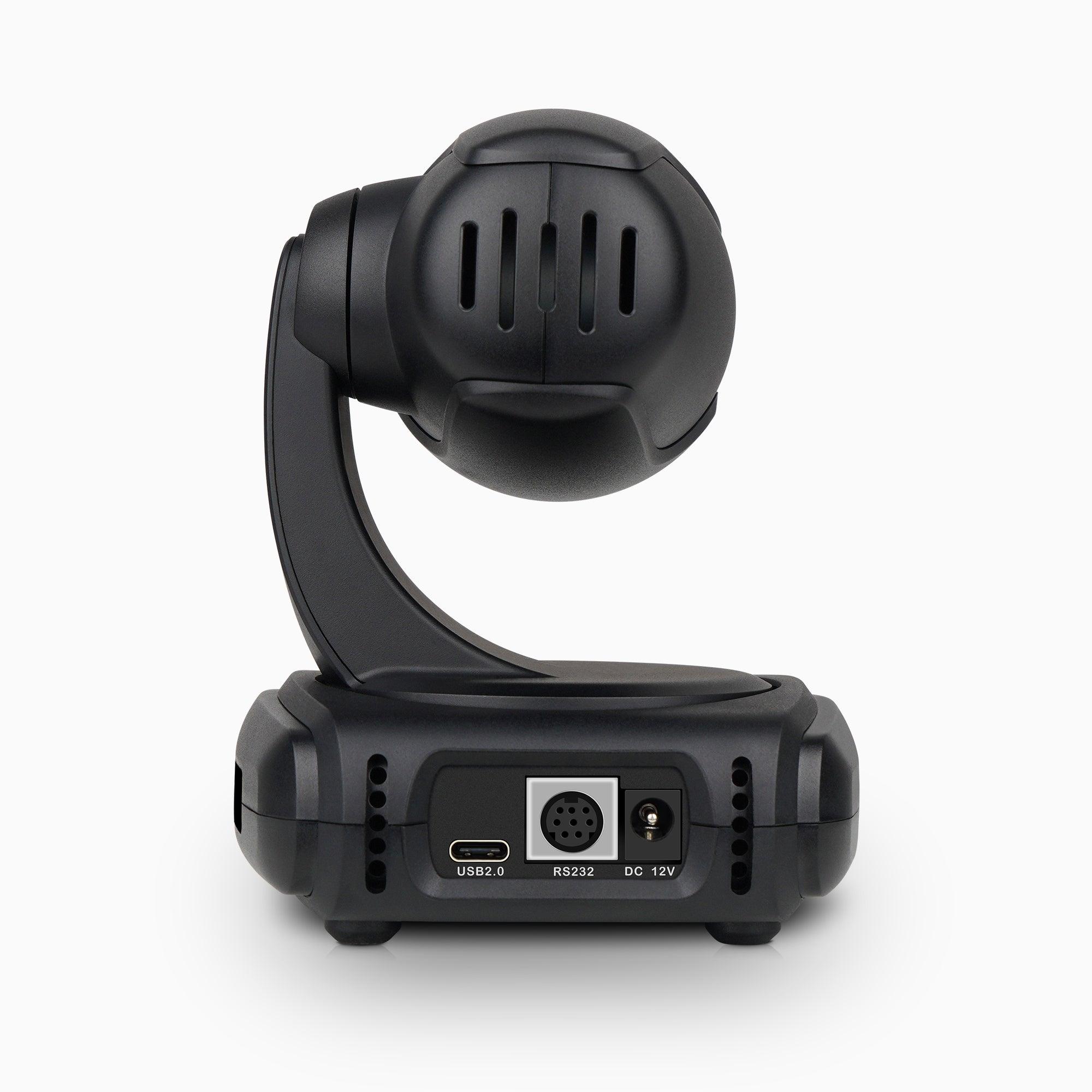

Input/output Interface
- USB Interface:1xUSB 2.0, Type-C
- Audio Input:Built-in dual Mics
- Communication Interface:1xRS232 In
- Power Jack:JEITA (DC IN 12V) /USB Type-C (DC IN 5V)
USB Features
- Operating System:Windows 7, Windows 8, Windows 10,Windows 11, Mac OS X, Linux, Android
- Color System / Compression:YUY2 / MJPEG
- Video Format:YUY2 (Isochronous mode) Max 640x480P30；MJPEG Max 1920x1080P30
- Audio on USB:Support
- USB Video Communication Protocol:UVC 1.1
- UVC PTZ Control:Support
Generic Specifications
- Input Voltage: DC 12V/ USB 5V
- Input Current: 12V 1.0A(Max)/5V 1A(Max)
- Operating Temperature: -10°C ~ 40°C
- Storage Temperature:-40°C ~ 60°C
- Power Consumption:12W（Max）
- MTBF:>30000H

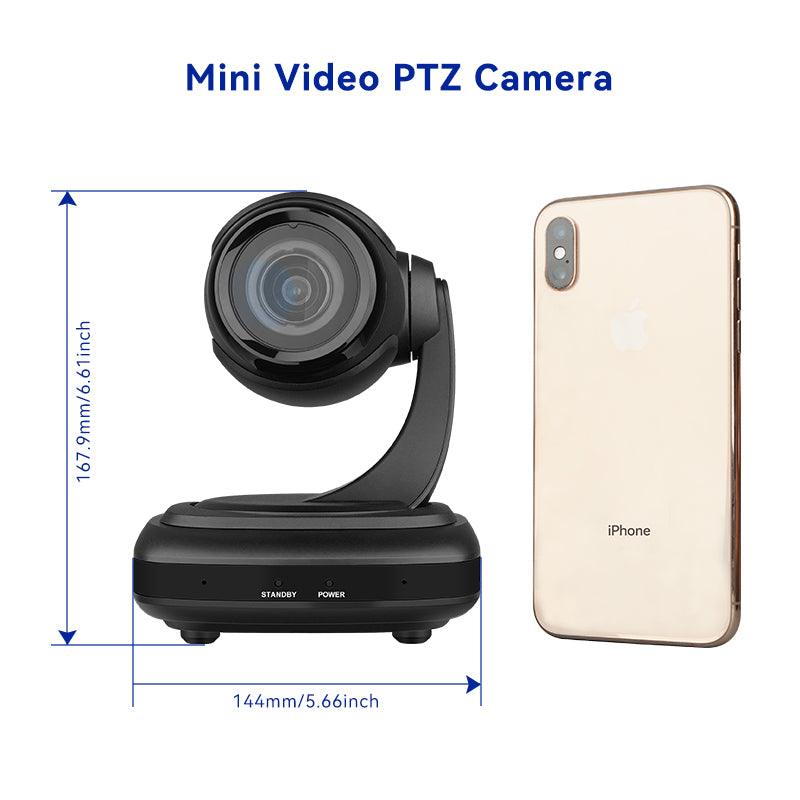

- Size: 144mm x 144mm x 167.9mm
- Net Weight:0.444kg
